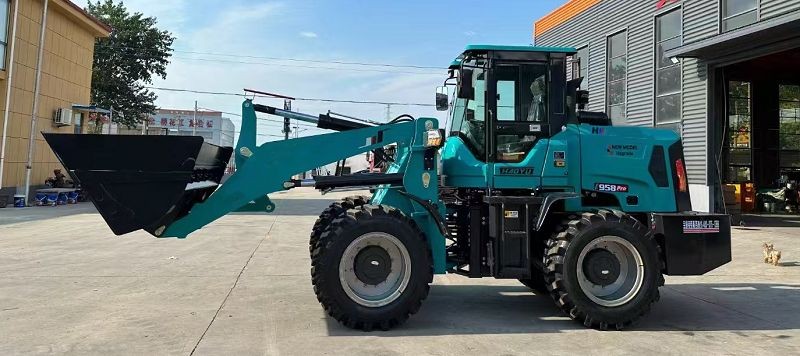

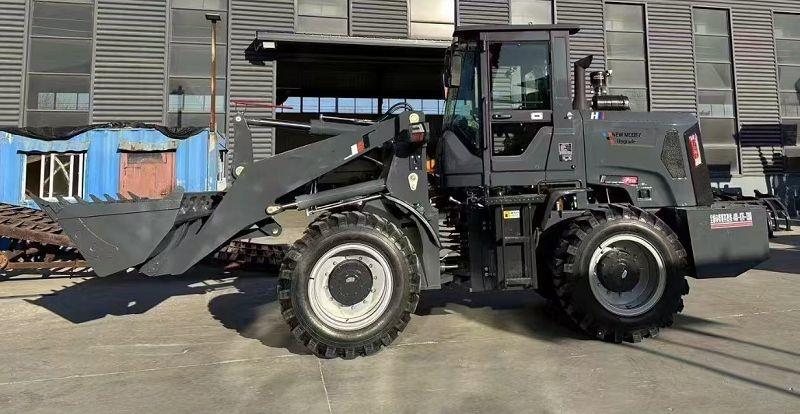

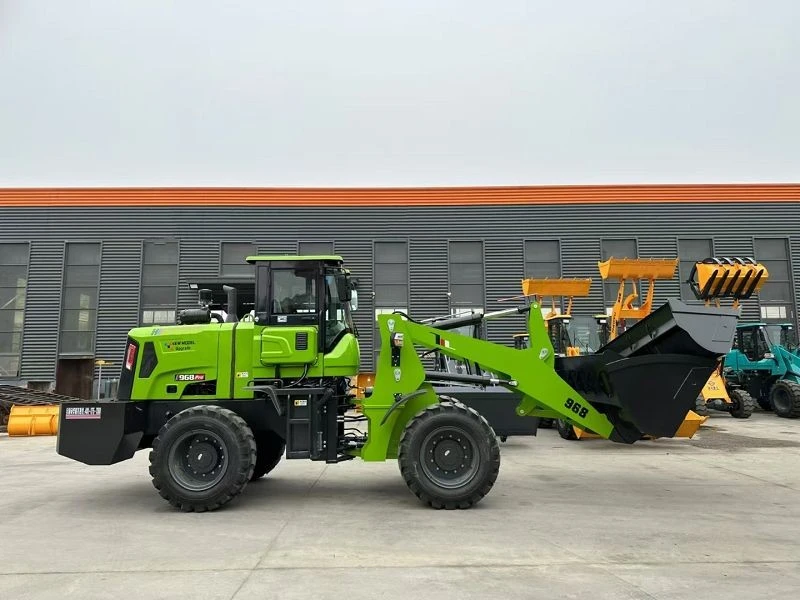

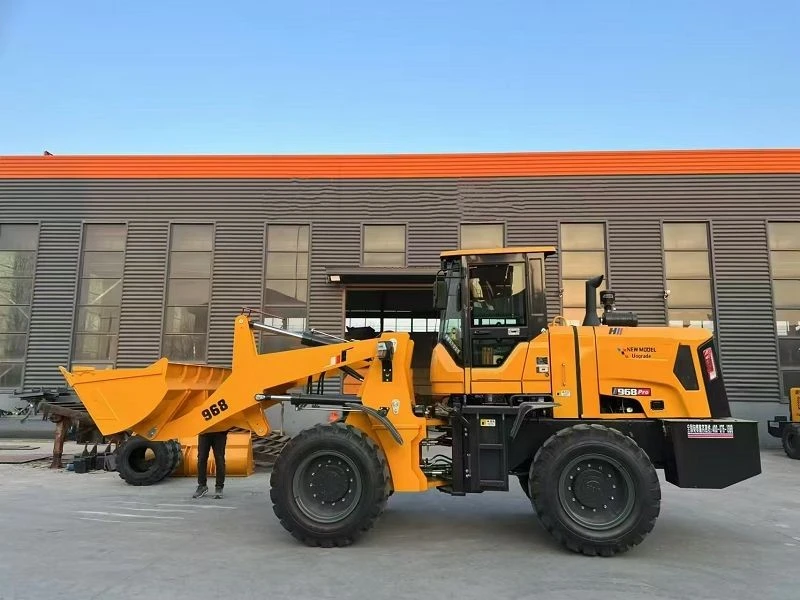

Large loader with an extended arm

Product presentation

The Shandong Fiester large loader with an extended arm is a customized engineering equipment developed by Fiester Machinery for high-altitude loading/unloading and long-distance operation scenarios.
As an enhanced and upgraded version of the traditional standard loader, it is positioned to "expand operational boundaries, improve efficiency, and adapt to complex working conditions." Widely used in ports, mines, grain depots, and infrastructure projects, it effectively addresses the core limitations of conventional loaders-such as limited reach, insufficient loading capacity, and narrow operational range-making it an indispensable and highly efficient tool in modern engineering operations.

Product Parameters

Product Parameter
engine type	4105	power rating	92kw
Engine Brand	Weichai Yuxing Power	Number of cylinders	4
rated speed	2000r/min	Maximum traction force	170KN
Rated load capacity	2500kg	Chopper bucket width	2200mm
Volume Capacity	1.2m3	discharge height	4500mm
Maximum driving speed	35km/h	Hydraulic flow rate	125 L/min
Hydraulic oil tank capacity	90L	wheel base	2500mm
Fuel tank capacity	253L	displacement	4.2L
Tire Type	16/70-20	Overall dimensions of the machine	720020002900mm
scope of application	Engineering infrastructure construction, mining operations, port logistics, municipal sanitation services, agriculture, forestry, and livestock farming, industrial and mining enterprises

Core advantages of loader with extended arm versus loader with standard arm

Higher unloading height, suitable for high cargo compartments and high storage bins

The extended boom structure significantly increases the maximum unloading height, enabling effortless handling of scenarios such as high-barbed truck operations, large silos, storage sheds, and high-level grain storage entry. In contrast, conventional standard arms have limited height, requiring secondary soil padding and the construction of ramps to assist operations-a time-consuming and labor-intensive process.

Longer unloading distance and broader operational range

The extended arm offers a larger working radius, enabling long-distance unloading, stacking, wall-side stacking, and side-loading/unloading operations without frequent vehicle repositioning; it provides greater operational flexibility in confined spaces and within material piles, reducing unnecessary vehicle movement.

Significant improvement in task efficiency

No auxiliary equipment (bulldozer, elevated platform, or crane coordination) is required. The entire process-including high-position loading, stacking, and material feeding-is completed in a single operation. Each vehicle can independently execute these tasks, significantly reducing cycle time and greatly enhancing overall loading and stacking efficiency.

Workshop Details

Highlights

Multi-functional compatibility for broader scenario coverage

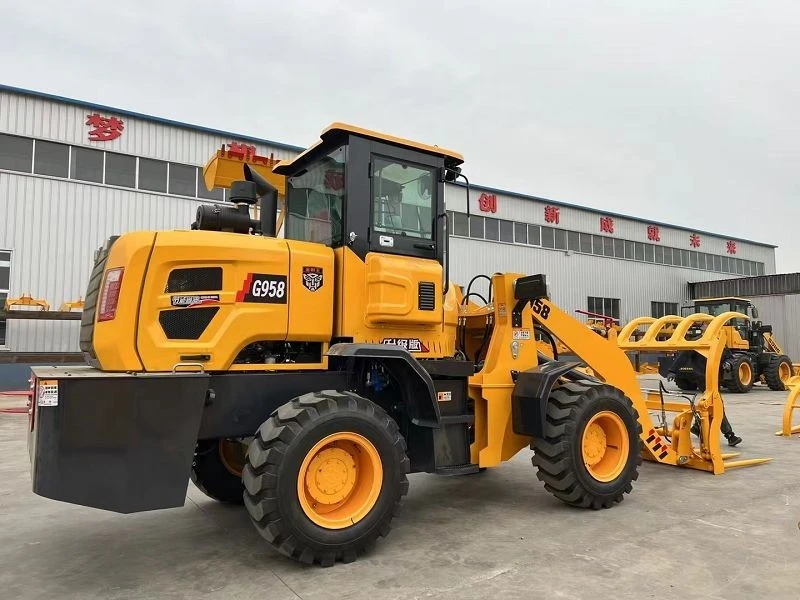

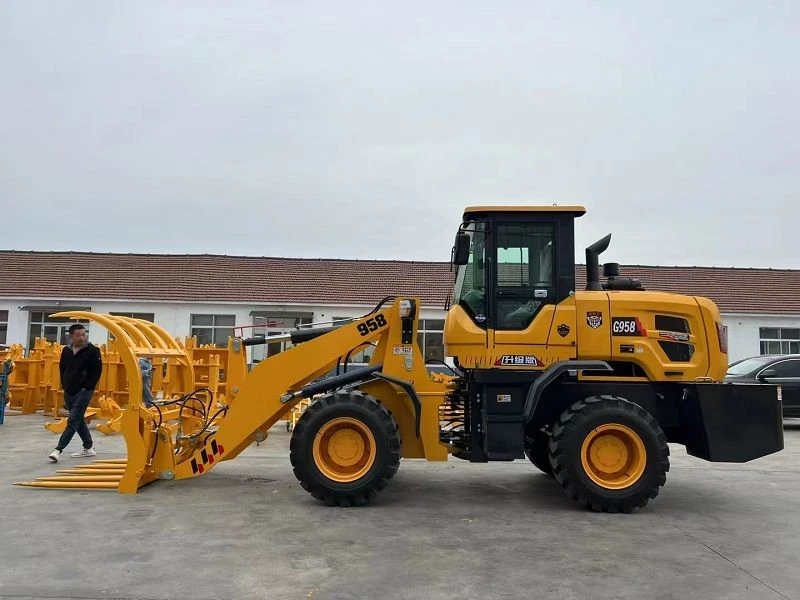

The loader supports rapid attachment switching, allowing flexible installation of various attachments such as standard buckets, grain buckets, wood grabbers, forks, and rock buckets. It is suitable for handling, loading/unloading, and stacking various materials including bulk goods, grains, timber, pallets, and ores, significantly improving equipment utilization efficiency. The boom length can be customized to user requirements, extending 1.5–3 m beyond the standard length, with a maximum unloading height of 5.3 m. An optional three-section telescopic boom with outriggers provides an unloading height of up to 9 m, enabling precise operation in high-altitude environments like high-rail freight cars, large silos, and ship holds. The machine can be configured with engine emissions, bucket capacity, and tires tailored to specific operating environments such as ports, mines, and grain warehouses, making it suitable for harsh conditions including high temperatures, dust, and slippery surfaces. Its operational versatility far exceeds that of conventional standard loaders.

Delivery, Payment, and Service

Export Qualifications

Possess the authority to import and export goods/technology, and support both self-operated exports and agency customs clearance.

Transportation and Delivery

Implementation of terms such as EXW/FOB/CIF, adaptable to both complete units and individual components, with options including sea, rail, or road transport. The service covers the entire process-from packaging and customs clearance to logistics, delivery, and after-sales support-using standard containers (20GP/40HQ) and fixed-structure complete units.

Payment Terms

Payment is only accepted via telegraphic transfer (T/T). Production will commence upon receipt of a 30% deposit. Upon completion of the unit manufacturing, successful trial operation, and submission of actual photos and videos of the finished unit, the customer shall pay the remaining 70% balance.

Service offerings

Lifetime technical support with remote video assistance; lifetime access to spare parts; only spare part fees are charged after the warranty period.

Product certification

The certification covers CE, EAC, and ISO 9001 international management system certifications, demonstrating a firm commitment to rigorous standards and a strong sense of responsibility.
