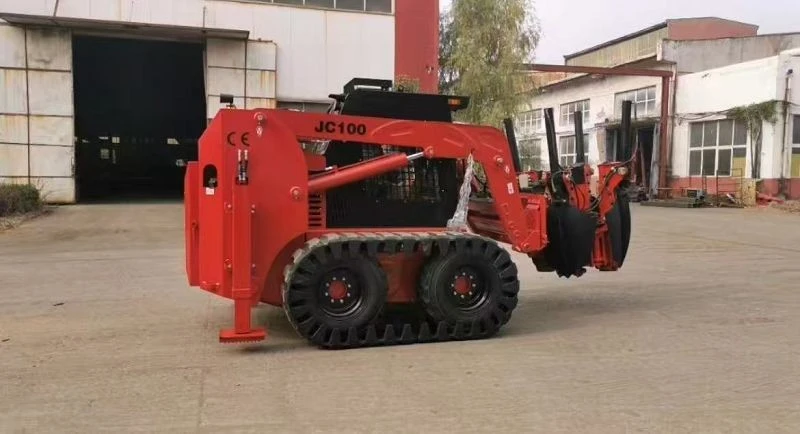

Orchard agricultural slip loader

Product presentation

The Fister Orchard Agricultural Sliding loader is a multifunctional equipment specially designed by Shandong Fister Machinery for confined spaces such as orchards, vineyards, and farm greenhouses, as well as soft terrains and low-altitude working environments. Featuring an ultra-narrow body, robust four-wheel drive, agile steering, and versatile functionality, it addresses the challenges of low efficiency in traditional manual orchard management and the difficulty large machinery faces in accessing tight spaces, making it an efficient "all-rounder" for modern orchard operations.

123

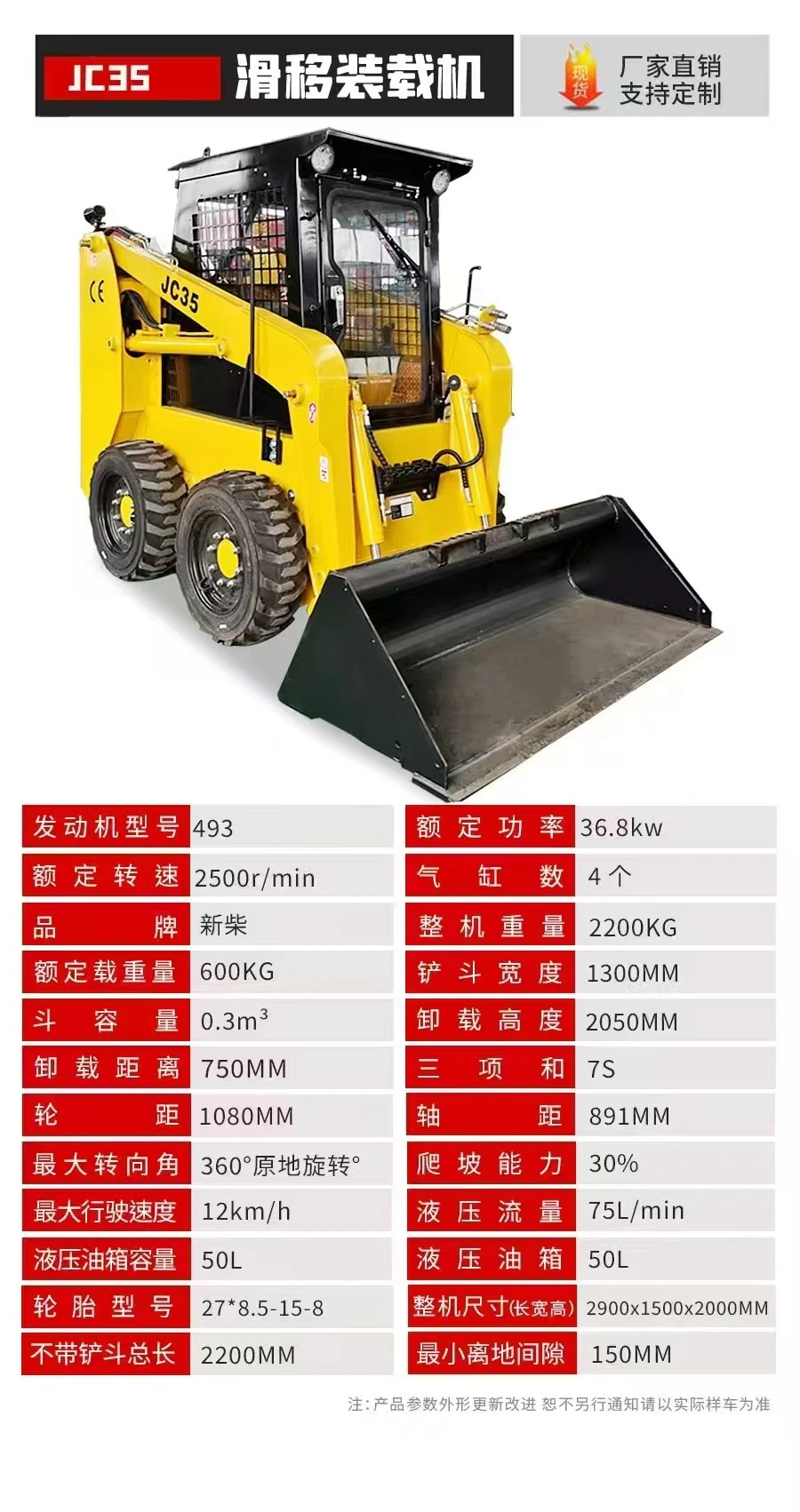

Product Parameters

Crawler-type sliding loader
engine type	493	power rating	36.8kw
Engine Brand	Xinchai	Number of cylinders	4
nominal rated speed	2500r/min	Total weight of the machine	2200kg
rated load	600 kilograms	Bucket diameter	1300mm
Control pump capacity	0.3m3	discharge height	2050mm
maximum speed	12km/h	Hydraulic flow rate	75L/min/120L/min
tank capacity	50L	Minimum ground clearance	150mm
Tire Type	27*8.5-15	Machine size	290015002000mm
scope of application	Municipal maintenance, construction, interior demolition, agriculture and animal husbandry, industry and warehousing, landscaping, etc.

Product Core Introduction

Custom-designed for orchards, compact and agile for easy maneuverability

Ultra-narrow body design: The device measures only 0.9–1.5 meters in width and 1.9–2 meters in height, allowing it to easily navigate through orchard rows spaced 1.8 meters apart, low greenhouses, and gaps between fruit trees without damaging branches or fruits.
Slip steering with zero radius: Independent hydraulic drive for left and right wheels/crawler track enables 360° turn-in-place without requiring reverse space, ensuring precise steering between fruit tree rows and eliminating blind spots during operation.
All-wheel-drive all-terrain capability: Powered by a 493 low-emission diesel engine with continuous four-wheel drive output, it delivers exceptional traction-performing flawlessly on muddy surfaces, orchard dirt roads, and gentle 30° slopes without slipping or sinking, offering far superior off-road performance compared to conventional small machinery.
tracked/wheel-mounted option available: The tracked model has lower ground contact pressure, reducing the risk of subsidence on soft soils; the wheeled model offers higher speed, does not damage hardened surfaces, and is suitable for various orchard terrains.

Core Performance: Efficient and Stable Orchard Operations

1. Powerful performance, fuel-efficient and durable
Equipped with a high-torque, low-fuel-consumption engine, it delivers ample power, low noise levels, and environmentally friendly emissions, meeting the requirements for sustainable orchard operations.
The core hydraulic components utilize imported brands (German Rexroth pumps/American Hysco valves), ensuring sensitive and smooth operation with seamless lifting, loading, and attachment switching, along with a low failure rate during prolonged operation.
2. Rapid hydraulic switching – one machine handles multiple tasks efficiently
Standard hydraulic rapid replacement system enables accessory switching in 30 seconds without tools, with a single machine covering the entire orchard operation process:
Clutch: Fertilization, dredging, removal of orchard waste soil, and site leveling.
Branch cutter: Use for transporting fruit boxes, branches, and straw without damaging the fruits or branches.
Trench opener: Used for digging trenches in orchards for fertilization and drainage.
Rotary tiller: performs shallow tillage, weeding, and soil loosening under trees.
Sweeper: Clears fallen leaves, residual fruits, and debris.
Crushing hammer: Used for removing cement piles in old orchards and crushing hard soil.

Production Details

Product certification

The certification covers CE, EAC, and ISO 9001 international management system certifications, demonstrating a firm commitment to rigorous standards and a strong sense of responsibility.
