Working on both fronts: excavator and loader

product presentation

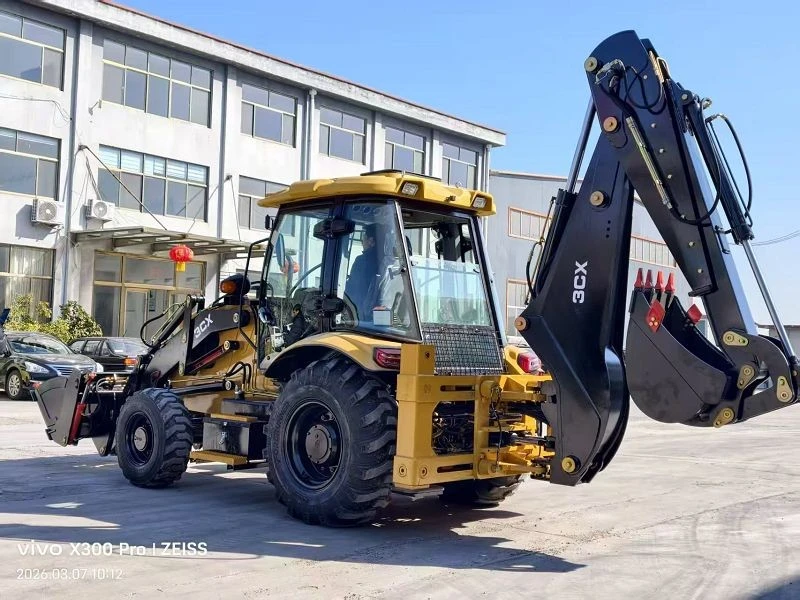

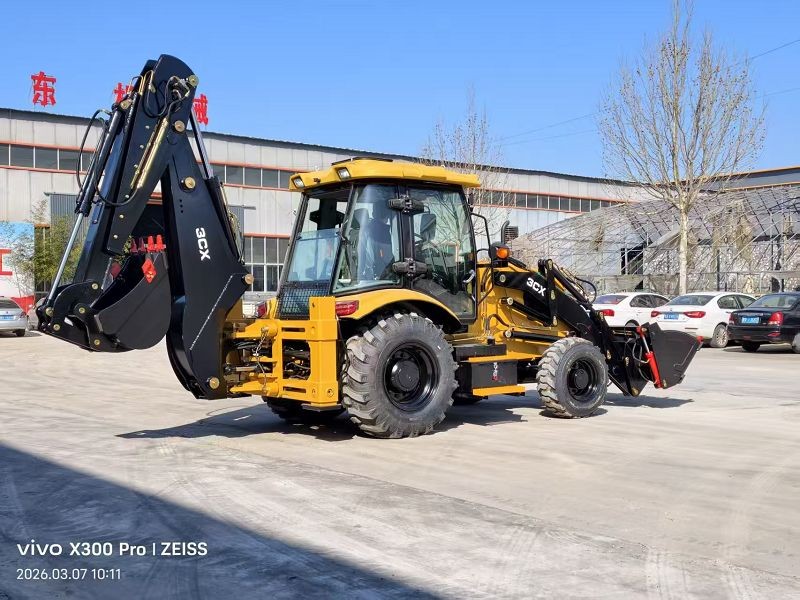

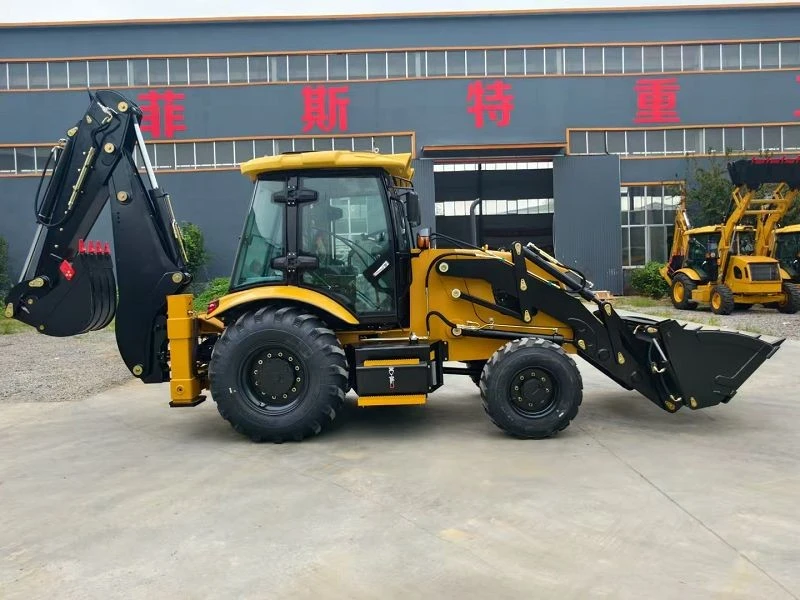

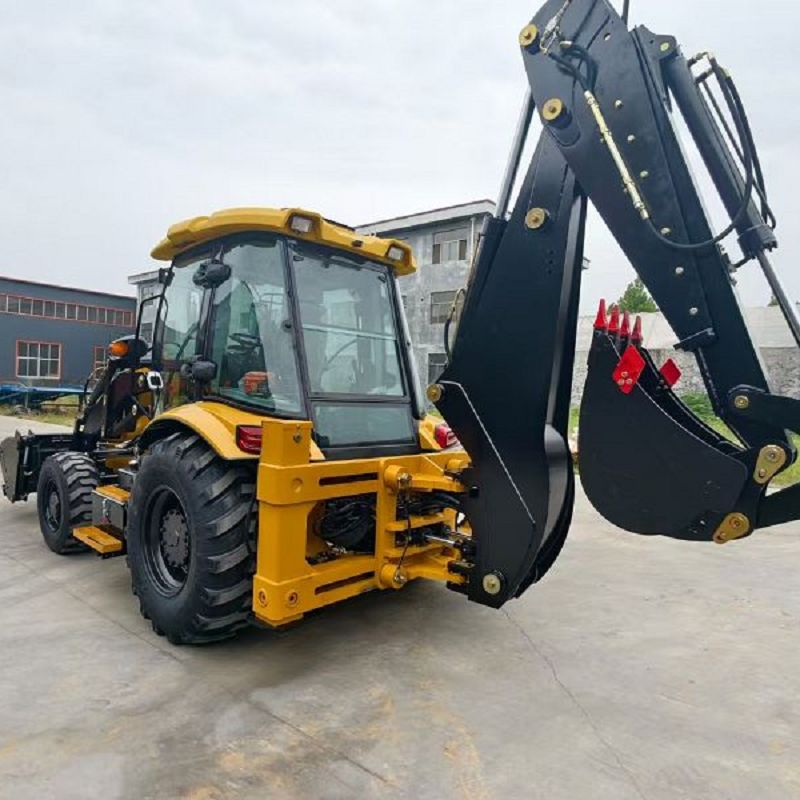

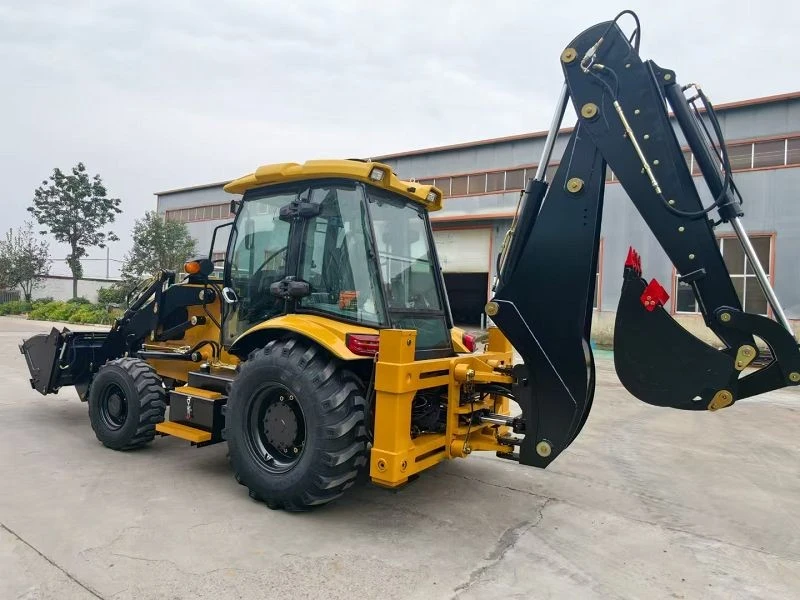

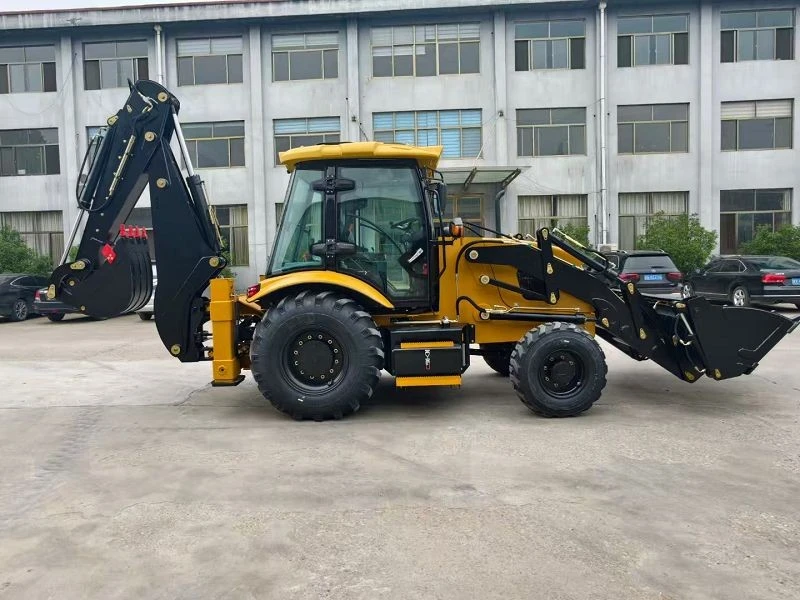

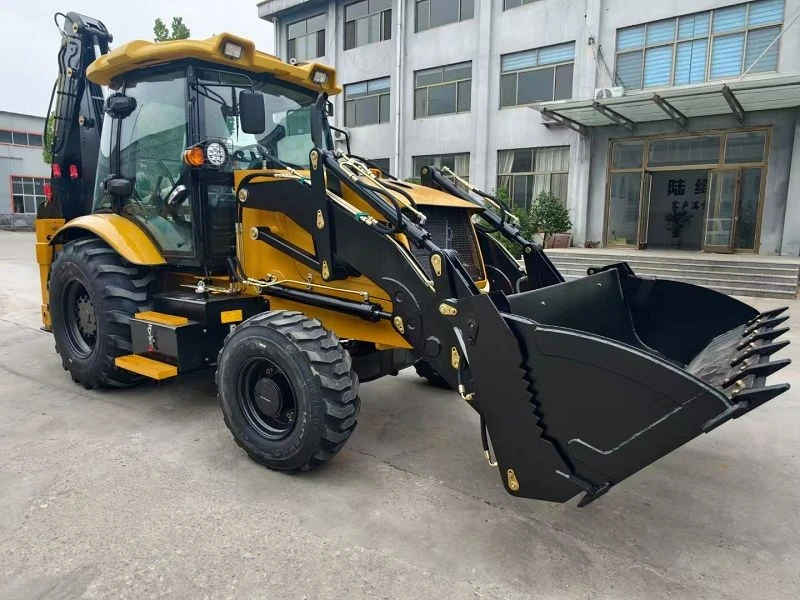

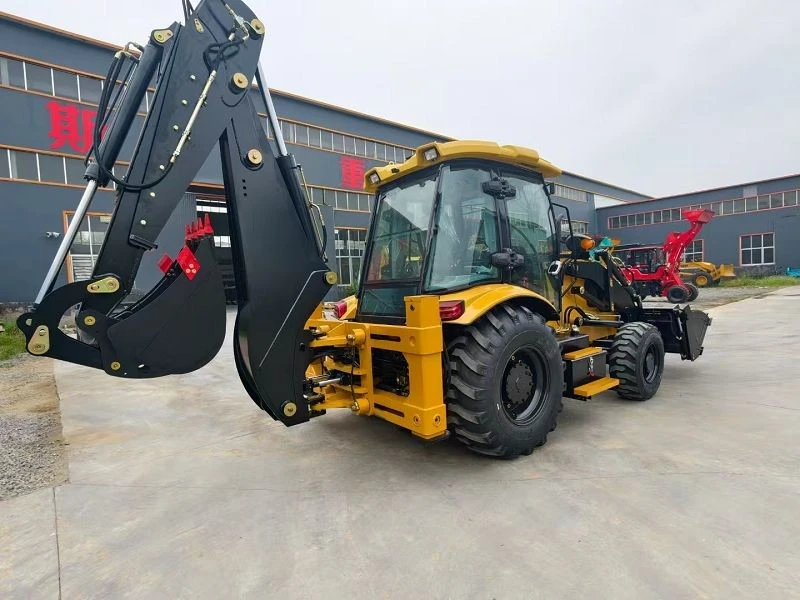

Shandong Feister Machinery Co., Ltd.'s dual-function excavator loader, commonly known as an integrated front-shovel-back-digging machine, is a versatile construction equipment combining loader and excavator capabilities. This single unit performs multiple operations including loading, excavation, bulldozing, land leveling, digging, and lifting. It perfectly replaces models such as the JCB 3CXD and Caterpillar 420. Featuring a four-wheel drive system, the machine boasts a robust structure, agile steering, and excellent off-road performance, making it widely applicable in municipal engineering, rural infrastructure construction, road maintenance, agricultural irrigation, factory site leveling, and landscaping projects. One unit accomplishes the tasks of multiple machines, reducing costs and labor requirements, and has become a highly sought-after essential equipment for construction and leasing operations.

Product Parameters

Product Parameter
engine type	4105	power rating	85KW
Engine Brand	Yu Chai	Number of cylinders	4
nominal rated speed	2000r/min	Maximum traction force	38–45 kN
Rated load capacity	2500 kilograms	Chopper bucket width	2200 millimeters
capacity	1.3m3	discharge height	2800 millimeters
Maximum driving speed	40km/h	Hydraulic flow rate	125 L/min
Hydraulic oil tank capacity	125L	wheel base	2353 millimeters
Fuel tank capacity	125L	displacement	4.3L
tyre type	14-17.5/19.5-24	The overall dimensions of the machine	6400×2300×2950mm
scope of application	Engineering infrastructure construction, mining operations, port logistics, municipal sanitation services, agriculture, forestry and animal husbandry, industrial and mining enterprises

Power Configuration

The same model as the JCB 3CX (a popular market model)

Model Positioning: Directly competitive to the JCB 3CX series
Operating weight: approximately 7,500–8,000 kg
Engine: / Yuchai 85 kW / Cummins 75 kW / Cummins 93 kW (optional)
Digging depth: 4100–4500 mm (for telescopic arm models, up to 5.2 m)
Load chamber capacity: 1.3–1.5 m³; lifting capacity: 2500–2800 kg

Transmission system: Fiest-specific gearbox + mountain-drive dual pump + reinforced first-stage wheel-side axle, four-wheel drive, with hydraulic pilot operation.

Core Advantages of the Product

Multi-functional device with exceptional cost-effectiveness

The front shovel can perform bulldozing, loading, and leveling operations; the rear excavator can carry out slotting, trench digging, and crushing tasks. This eliminates the need for separately purchasing an excavator or loader, significantly reducing equipment investment costs while enabling flexible site relocation and convenient movement between construction sites.

Powerful performance, fuel-efficient and durable

Equipped with a high-quality National IV-compliant engine, it boasts ample power reserve and substantial torque, delivering robust performance without lagging under heavy loads while offering economical fuel consumption. Standardly featuring a four-wheel-drive off-road chassis, it effortlessly navigates muddy terrain, potholes, mountain roads, and construction sites.

Stable hydraulic system with effortless operation

Equipped with a high-end load-sensitive hydraulic system, it features rapid response and smooth operation. Standard pilot operation ensures a lightweight and precise handling experience, enabling quick mastery even for beginners. The reinforced arm and forearm, combined with a thickened steel body, provide excellent load-bearing capacity, resistance to bending, and durability with minimal deformation.

Stable structure ensures work safety

Equipped with reinforced H-shaped support legs, ensuring enhanced stability during excavation operations; the vehicle features a rational center of gravity design, preventing head tilting or rollover under heavy loads; the enclosed luxury cab incorporates shock-absorbing seats and offers an expansive field of view, ensuring comfortable driving and riding conditions without fatigue during prolonged work.

Customizable configuration with comprehensive accessories

The system supports optional configurations including side-shifted boom, telescopic boom, four-wheel steering, and crab-mode operation, enabling effortless operation in narrow alleys and rural paths. Additional attachments such as a breaker hammer, wood cutter, soil loosener, and multi-functional bucket can be installed to meet various specialized working conditions.

Interior diagram of the cab

Factory Workshop Details

Product certification

The certification covers CE, EAC, and ISO 9001 international management system certifications, demonstrating a firm commitment to rigorous standards and a strong sense of responsibility.
